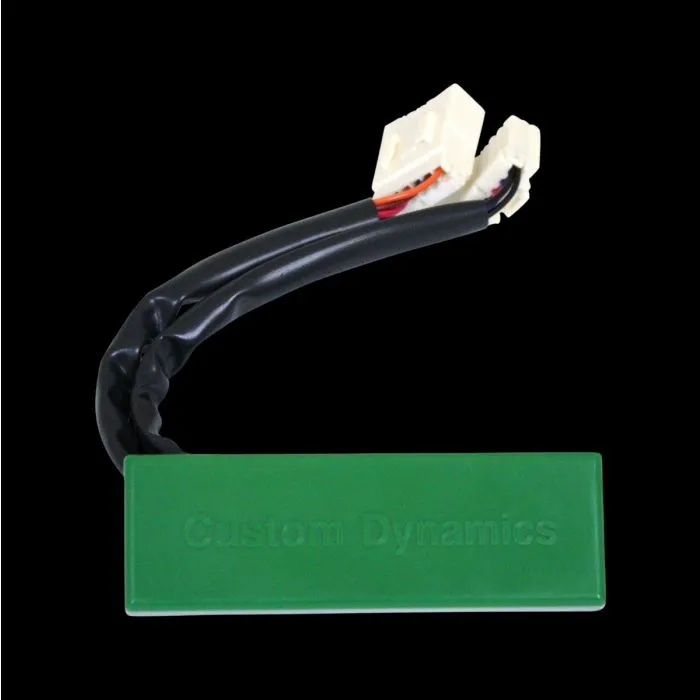

Custom Dynamics Smart Triple Play Unit For Harley Davidson 2004-2013 Sportster Models (GEN-SMART-TPU-XL)

Custom Dynamics plug and play SMART Triple Play® module converts rear 1156 turn signals (models with a center taillight) to function as run, brake, and turn with choice of 10 user selectable built in brake light strobe/flash patterns (user can also select no strobe/flash on brake).

Additional functions include selectable running light intensities to match the running light brightness of turn signals to center taillight, ability to apply brake strobe/flash patterns to center taillight only, rear turns only, or rear turns and center taillight, and built in SMART function which allows normal turn signal flash to override the brake strobe/flash when simultaneously braking and turning.

Plug and Play on 2004-2013 Harley-Davidson® Sportster® Models (Does Not Fit: XL1200N, XL1200X, XL1200V, XR1200, XR1200X, or XL883N). Additional fitment available for 1999-2003 Sportster® models and 2014-2020 Sportster® models.

Works with Custom Dynamics® Bullet Style Red LED Turn Signals or stock incandescent bulbs (rear turns must be converted to red color for DOT compliance).

The use of this product may require a Signal Stabilizer™ or load equalizer (2011-2018 Softail®, 2012-2017 Dyna®, 2014-2018 Touring, 2014-2018 Sportster® models do NOT require a Signal Stabilizer).

SPECIFICATIONS:

• RUN-BRAKE-TURN FUNCTION
• LED OR INCANDESCENT COMPATIBLE
• 10 BUILT IN BRAKE PATTERNS
• BUILT IN SHORT CIRCUIT PROTECTION
• SLIM LINE DESIGN: 4.2" X 1.4" X 0.6"
• LIFETIME WARRANTY
• MAXIMUM LOAD OF 27 WATTS PER CHANNEL
• US PATENT 8,588,997
• SOLD EACH
